Venturi Scrubber

These classic wet scrubbers (sometimes employed within the Multistage Wet Scrubber), series VNC-VNCS-VNRS, can be with fixed or variable throat and moreover, in relation to pressure losses, we distinguish Venturi at low, medium or high energy.
The system with special variable throat offers the huge advantage of being able to adapt the apparatus operation to any possible change of the airflow, while the pressure losses affects considerably the efficiency of collection for any type of powdered pollutant, whose granulometric characteristics determine the appropriate operation conditions.

Finally we'd like to highlight our special Venturi VNC type, where the washing liquid circulation takes place without the aid of any pump, but just by a flow liquid suspension from the sucked air.



MAX AIR FLOW RATE TREATED:
Venturi VNCS e VNRS: 250,000 m3/h
Venturi VNC: 120,000 m3/h



APPLICATIONS:

  • Foundries
  • Chemistry
  • Food
  • Ceramics
  • Galvanizing
  • Incinerating
  • Tanneries
  • Marble

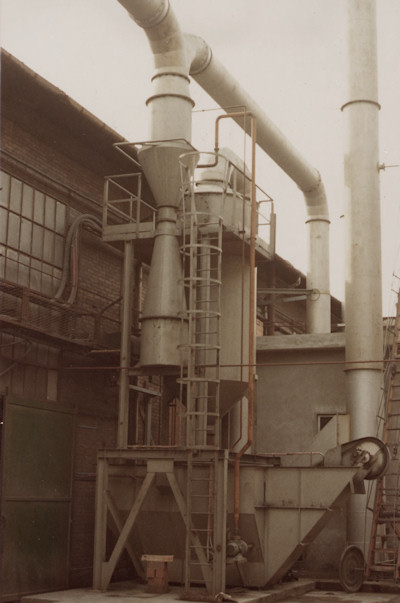

Fume cleaning system from incinerator RSU
- Fume-cleaning system from incinerator RSU
- Wet scrubber VNCS type
- Fumes flow rate 30,000 m3/h

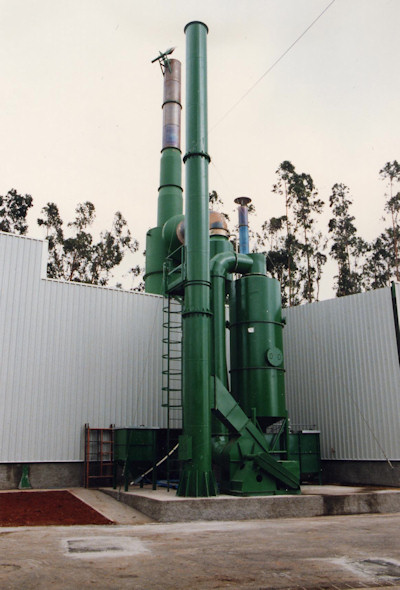

Fume cleaning system from hot galvanizing
- Fume-cleaning system from hot galvanizing
- Wet scrubber VNC type
- Fumes flow rate 25,000 m3/h

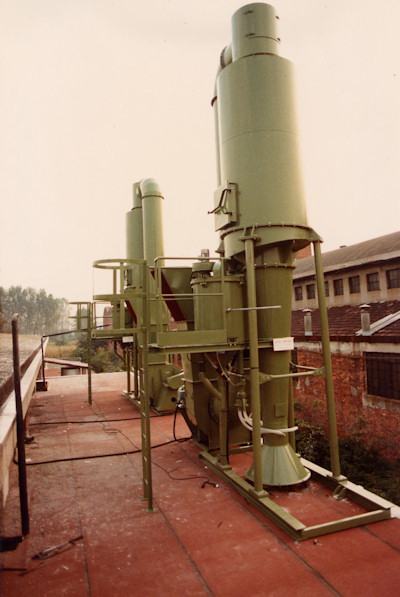

Fume cleaning system from secondary aluminum
- Fume-cleaning system from secondary aluminum production
- Wet scrubber VNCS type
- Fumes flow rate 20,000 m3/h

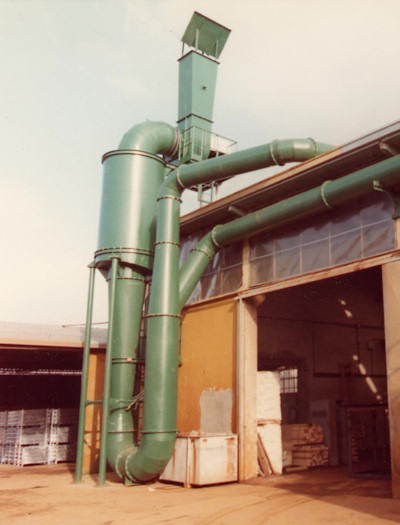

Air cleaning systems from leathers finishing
- Air cleaning systems from leathers finishing
- Wet scrubbers VNC type
- Air flow rate 15,000 m3/h/each

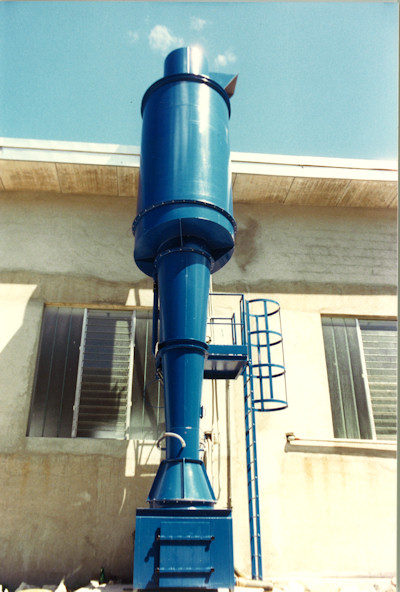

Air cleaning system from leathers finishing
- Air cleaning system from leathers finishing
- Wet scrubber VNC type
- Air flow rate 25,000 m3/h
